r.LiNK interface compatible VAG MIB,MIB2 - Std+High-NTSC

1 2 3 4 5
(0/5) Bli först med att betygsätta.
Artnr: RL-MIB17

Beskrivning

.LiNK RVC-input for connection of a rear-view camera. Compatible with VW Composition Media (not all models), Discover Media, Discover Pro. Skoda Bolero, Amundsen, Columbus. Seat Mediasystem Plus. Head-unit must be coded with diagnosis computer! Factory OPS must be installed.



Product information "r.LiNK interface compatible VAG MIB,MIB2 - Std+High-NTSC"

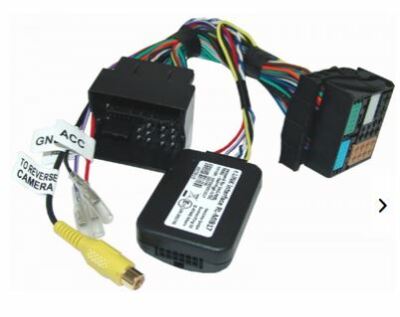

The r.LINK interface allows the connection of rear-view camera to the factory navigation system.

Product features

Plug and play interface
Integrated into the vehicle infotainment
Rear-view camera input (only NTSC cameras)
Automatic switching to rear-view camera input (head-unit coding required)


Compatibility



Brand Model Navigation
Seat Arona MY 2018-,
Ateca (KH7) MY 2017-,
Ibiza (6P) MY 2016-,
Leon3 (5F) MY 2013-,
Toledo4 (KG) MY 2016-
-- only vehicles with factory OPS --
MIB/MIB2 High/Standard
Navigations System Plus or Media System Plus
6.5inch or 8inch monitor
Skoda Fabia3 (NJ) MY 2014-,
Karoq (NU7) MY 2018-,
Kodiaq (NS7) MY 2017-,
Octavia3 (5E) MY 2012-,
Rapid (NH1) MY 2016-,
Superb3 (3V) MY 2015-
-- only vehicles with factory OPS --
MIB/MIB2
High/Columbus and Standard/Bolero/Amundsen
5.8inch, 6.5inch or 8inch monitor.
VW* Arteon (3H) MY 2018-,
Crafter (SZ/SY) MY 2017-,
Golf7 MY 2012-,
Golf7 Sportsvan MY 2014-,
Passat (B8) MY 2016-,
Polo5 (6C) MY 2014-2017,
Polo6 (AW1) MY 2018-,
T-Roc (A11) MY 2018-,
Tiguan2 (AD1) MY 2016-,
Touran (5T) MY 2016-
-- only vehicles with factory OPS --
MIB/MIB2
High/Discovery Pro and Standard/Composition Media*
5.8inch, 6.5inch or 8inch monitor.
* NOT compatible to Composition Media with part numbers,
as a full coding of the head-unit is not possible on these:

3Q0035812
3Q0035819, 3Q0035819A, 3Q0035819B, 3Q0035819C
3Q0035820, 3Q0035820A, 3Q0035820B, 3Q0035820C
5G0035812
5G0035819, 5G0035819A, 5G0035819B, 5G0035819C
5G0035820, 5G0035820A, 5G0035820B, 5G0035820C

The letter at the end is merely the software version of the head-unit,
newer versions are likely to not be compatible as well!
Only the last 6 digits/numbers are relevant.
The part number of the head-unit can be displayed on the monitor:
Menu button->Setup->System-Information->part number device



Limitations



After-market rear-view camera Compatible only with NTSC cameras.
Coding Vehicle must be coded by diagnosis computer to rear-view camera. On some vehicles this is only possible if the vehicle is equipped with a factory optical park distance system with graphical display on the monitor.

Specifikationer

Artnr: RL-MIB17
