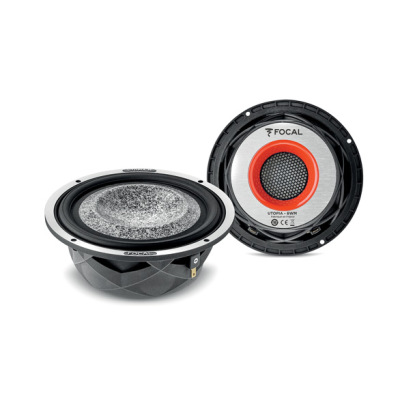

Focal Utopia M 6,5" midwoofer

Simply excellent

SÄLJS ENDAST AV FOCAL ELITE ÅTERFÖRSÄLJARE

Woofer
Designing a 6.5” woofer that perfectly combines extreme performance, high-end design and shallow depth is a real challenge. Our teams succeeded, by combining the best of our latest technologies: ‘M'-profile 'W' sandwich cone, TMD® surround, progressive spider and coupling it with a unique basket design, inspired by French architecture. The result is simple: excellence at all levels.

An ‘à la carte’ concept

Do you dream about building your own, bespoke, audio system, by choosing each speaker driver based on your vehicle and your requirements? With our new Utopia M line, this dream has now come true, with only one limit: your creativity.

Made in France and unique design

Utopia M range is entirely designed, developed and manufactured in France, in our workshops in Saint-Etienne. A unique and internationally recognized expertise for nearly forty years. In addition to the new ‘M’-profile ‘W’ sandwich cone, our designers went to the extreme in developing a disruptive design. The design of the Utopia M chassis is a subtle mix of tradition, performance and elegance “à la française”.

M'-profile 'W' sandwich cone
The new, patented, ‘M'-profile cone is the result of many years of research and our expertise in materials and their geometry. The innovative ‘M’-profile, made from a single piece, means it is incredibly rigid and perfectly combines the three criteria essential for creating an “ideal” speaker driver: rigidity, lightness and damping. The result is an extremely linear frequency response, a low distortion rate and better sound dispersion.
Upon listening, this cone delivers striking realism and level of detail, that transports you into the heart of music.

TMD® surround
Originally developed for the Sopra line of high-fidelity loudspeakers, our TMD® (Tuned Mass Damper) surround has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. The speaker driver takes advantage of this patented technology by spreading better defined and very realistic midranges’ frequencies.

Progressive spider
The progressive spider used on all our Utopia drivers is built around a progressive section that reproduces all the impact of the bass whilst optimising the linearity, precision and dynamics of the sound.


SPECIFICATIONS

Nominal power
100W
Maximum power
200W
Sensitivity
(2.83V/1m) 91.5dB
Nom. impedance
4Ω
Cone
W Surround Butyl
DC resistance
2.7Ω
VC diameter
80mm 31/8''
Former
Glass Fiber
Layers
1
Wire
CCAW
Magnet
D x H
75x4mm 215/16'' x 03/16''
Net weight
1,050g 2.3lbs



Focal Utopia M 6,5" midwoofer

Focal Utopia M 6,5" midwoofer
Artnr: 6WM
1Par
Mer information: focal_2019_catalog_car-audio
utopia-m_woofer-6wm_specification-sheet
utopia-m_woofer-6wm_technical-sheet
