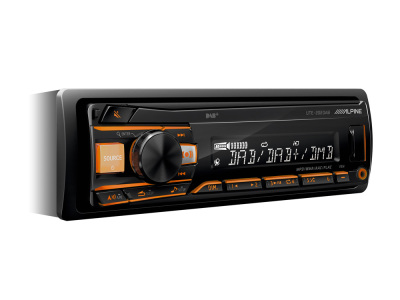

Alpine Digital Radio with DAB+ and USB Playback and Smartpho

DIGITAL MEDIA/DAB RECEIVER | Car Stereo | Digital Radio with DAB+ and USB Playback and Smartphone connectivity - UTE-202DAB
The UTE-202DAB is an affordable single-DIN DAB+ digital radio that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.
Connect your Smartphone to enjoy all your stored audio content, stream Spotify or internet radio, or simply connect a USB stick - there are many connectivity solutions possible with this Alpine head unit.
Wireless remote controls are available as accessory.
Built-in amplifier: 4 x 50 Watts
2 PreOuts (2 Volts)



Features

Tuner
Memory Presets: Preset Stations (FM:12, MW:6, LW:6)
Memory: Auto Memory

RDS
RDS Functions: AF, TA, TP, PTY, EON
PTY (Programme Type) Display

DAB Tuner
DAB+ Tuner Built-in
DAB+/DMB Supported
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Service Preset: 18 Preset Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Antenna Power Supply Selection
A compatible DAB Antenna is required

USB Media Connection
Front USB Connection
MP3, WMA, FLAC, AAC Playback
Folder Up/Down
M.I.X. Random Play
Repeat: Track, Album, All
USB AOA (Android Open Accessory) 2.0

Sound Tuning
Subwoofer Level Adjustment
BASS ENGINE SQ: Level Control OFF/1-6
Subwoofer Phase Select: 0°/180°
Subwoofer System Select
High Pass Filter
Low Pass Filter
2V Voltage 2PreOuts
10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
3-band Parametric Equalizer

General
Power Output: 4 x 50 W High Power Amplifier
Display LCD: 14 Segments White LCD Display 1Line
Control Type: Rotary Encoder Knob
Variable RGB Illumination Buttons
2 PreOuts (2V, Front + Subwoofer)
24-bit DAC
Front AUX Input (3.5mm mini jack)
Steering Wheel Remote Control Ready
-20dB Mute
Remote Control Ready
Clock
Detachable DIN Trim Plate
Detachable Face Plate
Dimmer
Power Antenna Lead
Remote Turn-On
AUTO OFF function (after 30 min)


Specifications

Max Power Output Ratings
Max Power Output: 4 x 50W

DAB Tuner
Tuning Range Band III : 174.928 - 239.2 MHz

FM Tuner
Tuning Range: 87.5 - 108.0 MHz

MW Tuner
Tuning Range: 531 - 1,602 kHz

LW Tuner
Tuning Range: 153 - 279 kHz

USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1000 mA
File System: FAT 16/32

Sound Tuning
Subwoofer Level Adjustment: 0 to 15 dB
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 80/100/120 Hz
Low Pass Filter: Off, 80/100/120 Hz
Bass Level Control Range: ±7 dB at 100Hz
Bass Center Frequency: 60/80/100/120 Hz
Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
Treble Level Control Range: ±7 dB at 10 kHz
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
Mid Level Control Range: ±7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)

General
Power Requirement: 12V.DC
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 30°
Weight: 0.8 kg

Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 177 mm

Alpine Digital Radio with DAB+ and USB Playback and Smartpho

Alpine Digital Radio with DAB+ and USB Playback and Smartpho
Artnr: UTE-202DAB
11+
Mer information: OM_CDE-205DAB_UTE-204DAB_UTE-202DAB_EN
