Beskrivning

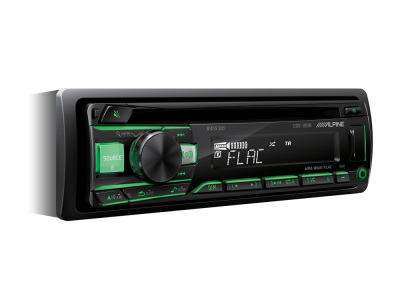

CD/USB RECEIVER - CDE-201R
The CDE-201R is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.
Connect your Android phone to enjoy all your stored audio content, stream Spotify or internet radio, or simply connect a USB stick - there are many connectivity solutions possible with this Alpine head unit.
Wireless remote controls are available as accessory.
Built-in amplifier: 4 x 50 Watts
2 PreOuts (2 Volts)

Features

Tuner

Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
Memory: Auto Memory

RDS

RDS Functions: AF, TA, TP, PTY, EON
PTY (Programme Type) Display

Disc Player

Disc Type: CD Player
Disc Playback Type: CD, CD-R/RW
Music Playback: CDDA, MP3, WMA Playback
M.I.X. Random Play
Repeat: Track, All
Playback Control: Play/Pause/Forward/Backward
CD Text Display
CD Text Name Search
24-bit DAC
Zero data Mute

USB Media Connection

Front USB Connection
MP3, WMA, FLAC Playback
Folder Up/Down
M.I.X. Random Play
Repeat: Track, Album, All
USB AOA (Android Open Accessory) 2.0

Sound Tuning

Subwoofer Level Adjustment
BASS ENGINE SQ: Level Control 0-6
Subwoofer Phase Select: 0°/180°
Subwoofer System Select
High Pass Filter
Low Pass Filter
2V Voltage 2PreOuts
10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
3-band Parametric Equalizer

General

Power Output: 4 x 50 W High Power Amplifier
Display LCD: 14 Segments White LCD Display 1Line
Control Type: Rotary Encoder Knob
Green/Red Selectable Illumination Buttons
2 PreOuts (2V, Front + Rear/Subwoofer)
24-bit DAC
Front AUX Input (3.5mm mini jack)
Steering Wheel Remote Control Ready
-20dB Mute
Remote Control Ready
Clock
Detachable DIN Trim Plate
Detachable Face Plate
Dimmer
Power Antenna Lead
Remote Turn-On

Specifications

Max Power Output Ratings
Max Power Output: 4 x 50W

FM Tuner
Tuning Range: 87.5 - 108.0 MHz

MW Tuner
Tuning Range: 531 - 1,602 kHz

LW Tuner
Tuning Range: 153 - 279 kHz

USB
USB Requirements: USB 1.1/2.0

Max. Power Consumption: 500 mA
File System: FAT 16/32

Sound Tuning

Subwoofer Level Adjustment: 0 to 15 dB
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 80/100/120 Hz
Low Pass Filter: Off, 80/100/120 Hz
Bass Level Control Range: ±7 dB at 100Hz
Bass Center Frequency: 60/80/100/120 Hz
Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
Treble Level Control Range: ±7 dB at 10 kHz
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
Mid Level Control Range: ±7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
